Technics Wifi Stereo - Black - Mini Systems

Technics Wifi Stereo - Black
  • Technics Wifi Stereo - Black
2x 30W speakers & 40W Sub, CD, DAB, DAB+, FM, USB, AUX, Optical, Wifi, Internet Radio, Spotify Connect, AirPlay, Tidal, DLNA, Bluetooth, Hi-Res Audio, Space Tune, Tone Control, Headphone Output, Clock Timer, Remote Control, Control App
Price:
NZ$ 1,799.99 including GST

NZ$ 1,565.21 excluding GST


or four interest-free payments of $450.00 with
Learn More

SC-C70MK2EBK
Rating:
( 0 reviews )
Purchase Qty:



Check out our demo model at our New Brighton Showroom, want a CD/FM/Streaming Mini System without speakers that looks super cool?  This is it....







JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™
Acoustic Lens and Louver
Twin Power Supply Circuit System
CD High-Res Re-master

JENO Engine

JENO Engine

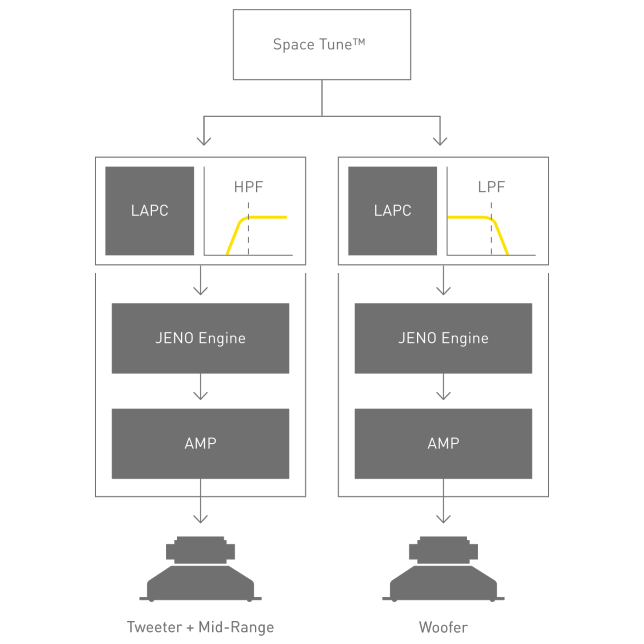

The amp section of the OTTAVA™ f succeeds the Technics Reference System design concept and embraces a fully-digital amp configuration equipped with JENO Engine (Jitter Elimination and Noise-shaping Optimization) in order to deliver all of the audio data contained in the high-resolution sound source faithfully to the speakers without loss. Moreover, the OTTAVA™ f is equipped with three units of the same JENO Engine as those used in our high-end models to optimally drive the built-in speakers, thus achieving a high-quality, integrated hi-fi system that meets Technics standards. It adopts a bi-amp structure to separately drive the woofers (low-frequency sound) and tweeter/mid-range speaker units (mid-/high-frequency sound), and utilises the high-performance signal processing circuitry (DSP) mounted in the JENO engine to achieve precise channel dividing, adjustment of time alignment between speaker units, and correction of frequency characteristics.
The LAPC technology is applied even to the control of sound characteristics to realise "Space Tune™" for correcting changes in frequency characteristics that occur in actual use due to installation conditions.

LAPC

LAPC is an original Technics speaker load adaptive technology. It measures the amp's frequency amplitude phase characteristics with speakers connected to the unit, and performs digital signal processing to achieve the ideal impulse response. Characteristic parameters optimised for the low-frequency and high-frequency speaker load characteristics of speakers are already pre-set in the LAPC computation circuit of the unit to realise ideal frequency and phase characteristics over the entire frequency range.

Space Tune™

Space Tune™ delivers optimised sound for the customer’s listening environment.

Supports a wide variety of music sources and high connectivity

Supports a wide variety of music sources and high connectivity

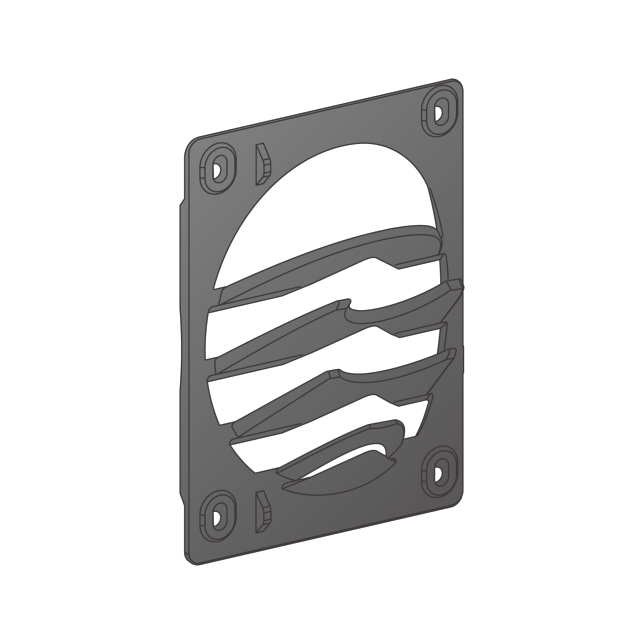

Acoustic Lens

Illustration of Acoustic Lens
The OTTAVA™ f is equipped with newly developed acoustic lenses featuring the “reverse dome-shape fin” structure. The rear of the fins are shaped to match the form of the soft-dome diaphragms of the tweeters, and positioned closely to the speaker units to provide long sound paths. This realises a wide directionality, expanded sound field and detailed high-frequency sound reproduction capability over the frequency range of 11 kHz to the high-res range. The fins are continuously connected to the Acoustic Louver on the front side to minimise disturbance to the high-frequency characteristics.

Speaker System

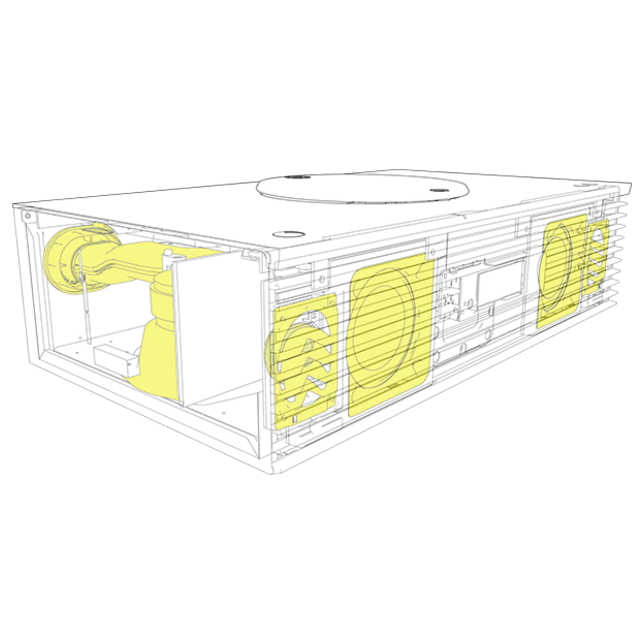

Photo of Speaker System
The speaker system consists of three types of newly developed speaker units. The high-res dome tweeters feature silk diaphragms that boast an excellent damping factor and smooth sound characteristics. The mid-range speaker units maintain an appropriate peak level and achieve seamless crossover. The woofers, which must reproduce the sound source faithfully even during high-power input, are provided with a large edge made of high-strength NBR (nitrile rubber) with a superb amplitude linearity as well as tough and flexible high-strength fiber dampers to powerfully support the large-motion voice coil bobbins. Coupled with the dual bass-reflex ports, these three types of speaker units reproduce sound over an ultra-wide frequency band in a range of 40 Hz to 50 kHz.

Twin Power Supply Circuit System

Regular power supplies use one transformer to supply power to the amp, CD drive, and digital circuits, and so if there is any load fluctuation or if noise occurs on a circuit, other circuits are affected, which results in degradation of the sound quality. This power supply system includes independently installed switch mode power supply circuitry for the amp and the other circuits, which eliminates mutual interference, thereby reducing degradation of sound quality caused by noise or power supply fluctuations. In addition, a layout with dedicated transformer and amp circuits enables the shortest possible connection to further reduce noise.

Optimally Activated Circuit System

The Optimally Activated Circuit System shuts down unneeded circuit and display to minimise the noise generated during playback.

Re-master

The high-precision signal processing circuitry of the JENO Engine is utilised to expand the frequency band of Bluetooth and Internet radio sources, in which high-frequency signals are commonly lost due to signal compression, to a range equivalent to that of a CD source. This eliminates the lack of expansiveness in high-frequency sound and the loss of sound details for enhanced sound quality.

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimization)
    Load Adaptive Phase Calibration (w/o Calibration function)
    Space Tune

Noiseless Signal Technology

  • Twin Power Supply Circuit System
    Optimally Activated Circuit System
    CD High-Res Re-master

Emotive Acoustic Technology

  • Acoustic Lens and Louver
    Dual bass reflex port

Output Power

  • Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz LPF)
    Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF)

Speaker Unit

  • Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 / Subwoofer: 12 cm Cone Type

Analogue Input Terminal

  • AUX IN x1 (φ3.5mm)

Digital Input Terminal

  • Optical Digital x1, USB-A

Headphone Output

  • Yes (Ø3.5 mm)

Disc Compatibility

  • Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)

USB-A

  • iPod/iPhone/iPad

    • No
  • Support Codec

    • WAV
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz)
    • AIFF
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • AAC
      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MP3
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100 Base-TX/10 Base-T)

Wi-Fi

  • IEEE 802.11 b/g/n,
    2.4 GHz Band (1-13 Channel)

AirPlay

  • Yes

Bluetooth® (Support codec)

  • Yes (AAC, SBC)

TIDAL / Spotify

  • Yes* / Yes*

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 45 W

Dimensions (W x H x D)

  • 450 x 143 x 280 mm

Weight

  • Approx. 7.8 kg

Accessories

  • Remote Control, AC Cord, DAB indoor antenna, Owner's Manual, Batteries for Remote Control

Note

  • *Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
    *Registration/subscription may be required. Fees may apply.
